Description
Product Overview
The 50Pcs Reusable 1.5mm Tile Leveling System provides an efficient solution for achieving flat, professional tile installations. Designed for both floor and wall applications, this anti-lippage tile leveling system locks adjacent tiles flush while the thin-set mortar cures.
Key Specifications
| Feature | Technical Details |
| Product Type | Reusable T-Pin Tile Leveling System |
| Joint Clearance (Spacer Size) | 1.5 mm (1/16 in) |
| Compatible Tile Thickness | 3 mm to 16 mm (1/8 in to 5/8 in) |
| Material Construction | High-Impact Polypropylene (PP) Body + Stainless Steel T-Pin |

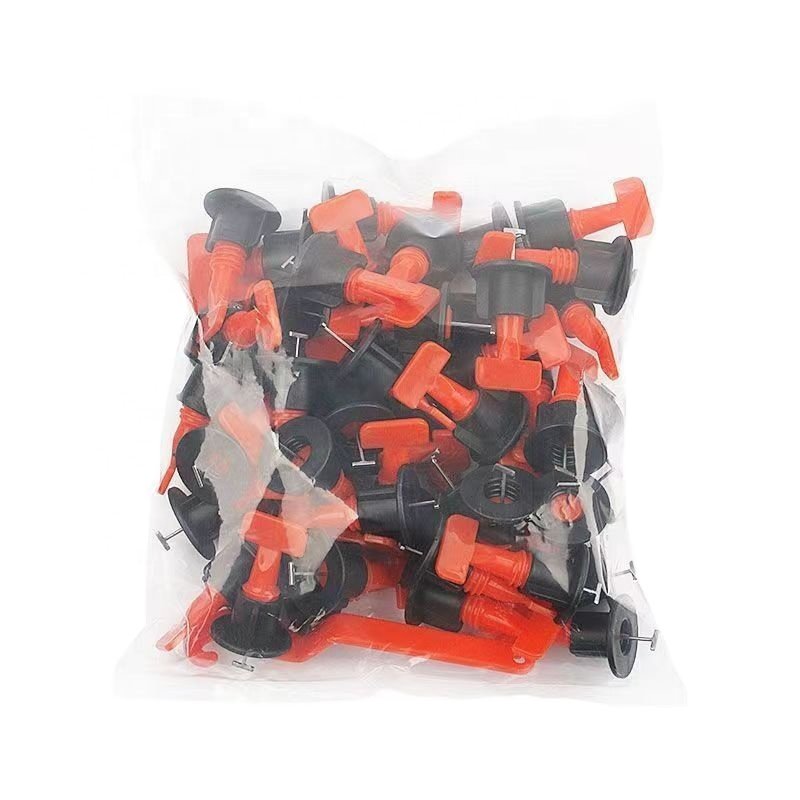

| Set Contents | 50x Reusable Tile Leveler Units, 1x Tightening Wrench |
| Operation Type | Reusable (Remove before thin-set fully cures) |
Technical Features & Benefits
-

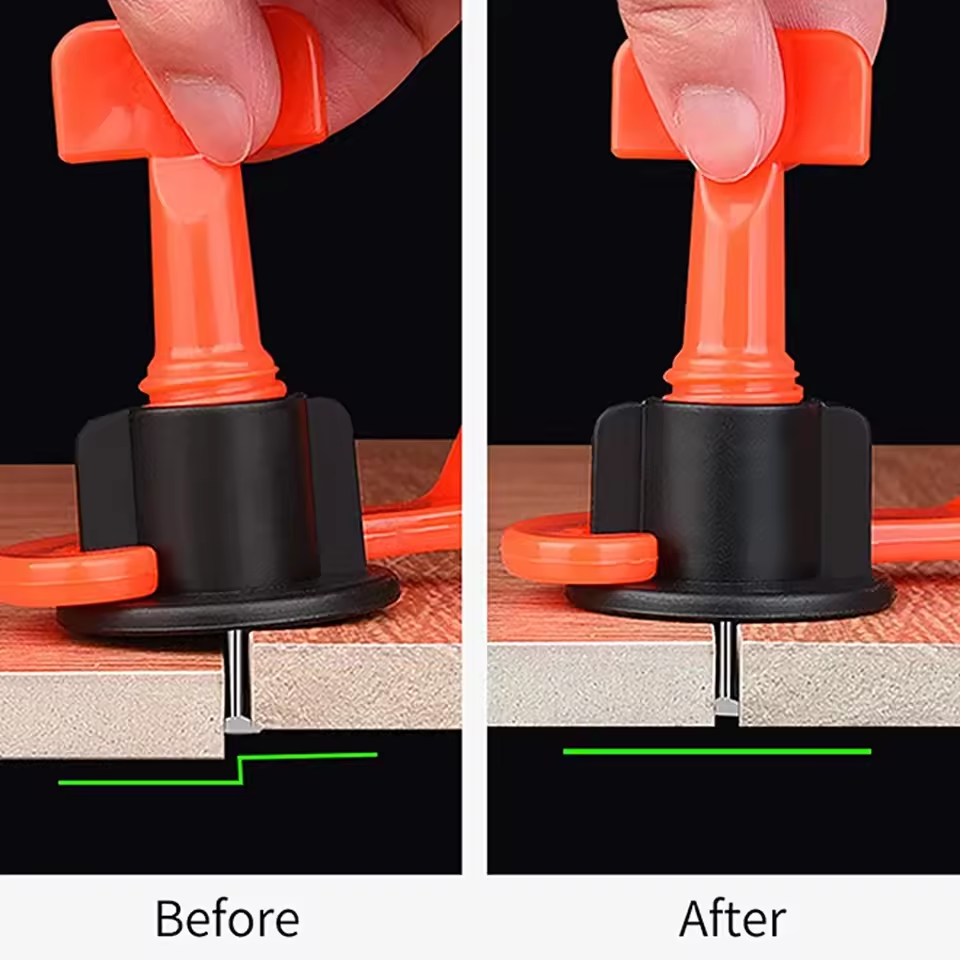

Complete Lippage Prevention: Maintains plane alignment between adjacent tiles to prevent uneven edges as mortar dries and shrinks.
-
Reusable Steel T-Pin Design: Heat-treated stainless steel pins rotate 90 degrees under tile corners without snapping, lowering per-job consumable costs.
-
Ergonomic Tightening Wrench: Included tensioning wrench allows uniform pressure application without scratching tile glaze or polished surfaces.
-
Faster Workflows: Simplifies layout verification and minimizes the need for tile grinding or manual re-shimming.
Step-by-Step Installation & Removal
-
Insert the 1.5mm stainless steel T-pin along the gap between adjacent tiles (tile gap must be $\ge$ 1.5mm).
-
Rotate the leveler body 90 degrees so the T-pin locks against the underside of both tile edges.
-
Tighten the adjusting cap clockwise using the provided wrench until both tile surfaces are flush.
-
Critical Removal Timing: Un-tighten and rotate the T-pin 90 degrees to remove the unit 4 to 6 hours after installation (before the tile adhesive fully sets).
